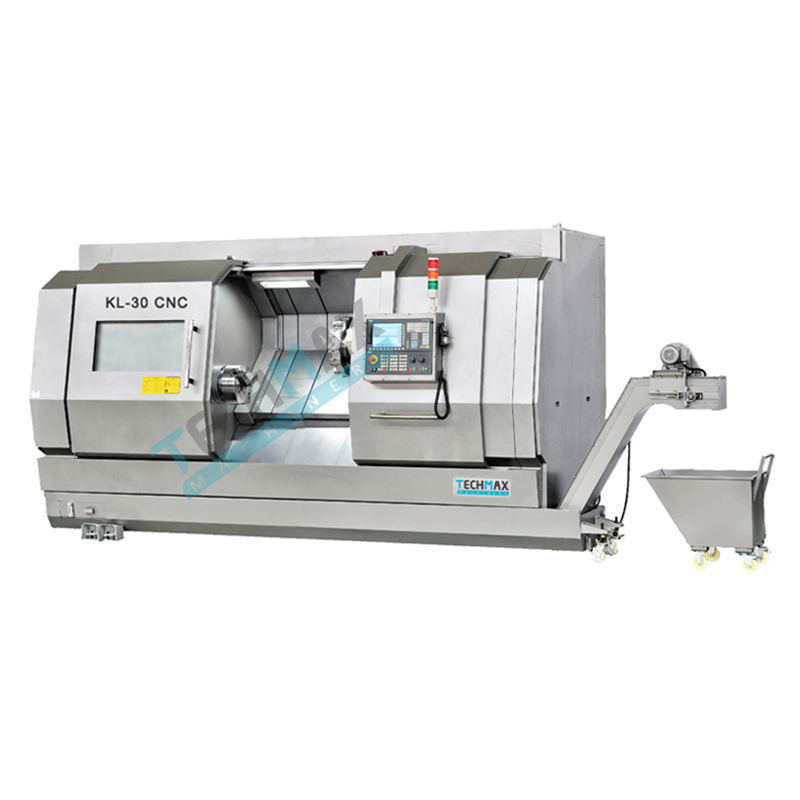

KL-30 CNC-CNC Slant Bed Lathes-

Techmax KL-series CNC lathe is designed to provide stable performance and high profit. Free to choose single workpiece processing or working with bar feeder to do machining automatically and continuously

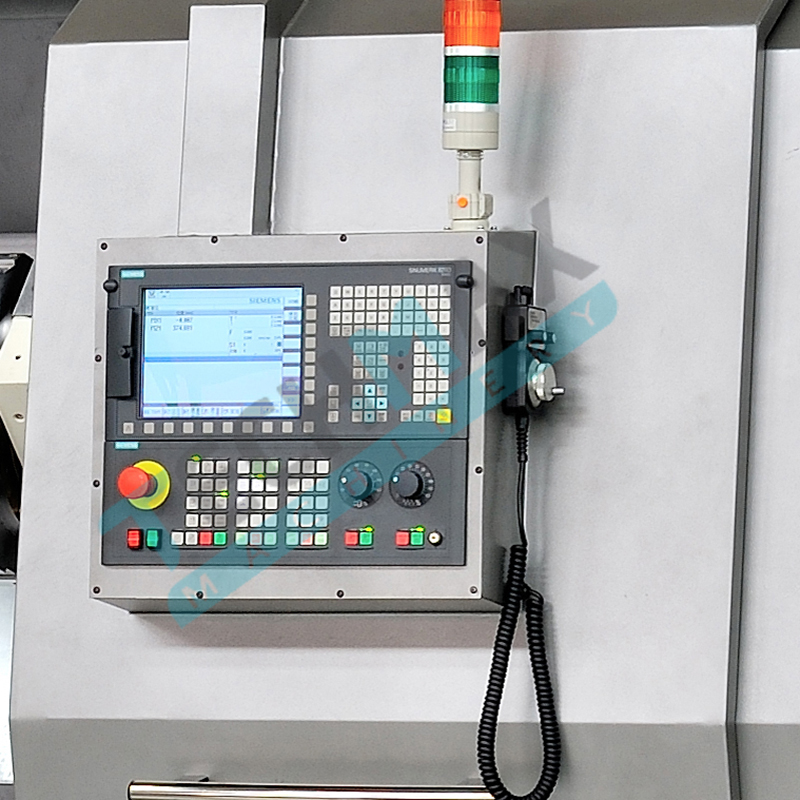

CNC System

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are available according to personal habits.

Hydraulic Chuck

This 3-Jaw hydraulic chuck provides excellent workholding capacity. It features industry-standard serrated jaws, and including all necessary adapters and tooling required for installation and operation.

Turrets with Live Tools(Option)

8-12 position hydraulic turret or German Sauter turret with live tooling (option) are available, which provides super-rigid mounting of turning tools and boring bars, also allows secondary operations - milling, drilling, slotting, and tapping - on the face of the part and around the diameter.

Hydraulic Tailstock (Option)

Hydraulic tailstock or programmable tailstock (option) is available. The tailstock is an essential part of your turning operations as soon as the length to diameter ratio of your work piece exceeds 3:1.

Linear Guide ways

Taiwan P-grade linear guide ways which ensure high precision and outstanding quality. With a complete lineup featuring self-aligning capability, impact-load resistance and wide variety.

Precision Ball Screws

Taiwan C3 grade precision ball screws, reduced variation of motion error helps improve quality of machined surface of machine tools and productivity of semiconductor manufacturing devices.

Auto Chip Conveyor(Option)

Auto chip conveyor (option) is available to remove the chips from the machine quickly. The conveyor can be activated via M-code, or directly from the control pendant, and there are settings to control the interval and duration of the conveyor cycle for automatic operation.

Auto Bar Feeder(Option)

Free to choose single workpiece processing or working with auto bar feeder to do machining automatically and continuously. Convenient parameters setting without need of any program modification. Length of remnant can be set as desired. Self detection for abnormal motions and is displayed on LCD.

Parts Catcher(Option)

The catch tray is easily adjusted for different part-off locations, and can be positioned to catch parts from the main spindle. The parts catcher

is activated by M-code, and fully integrated with control system.

Renishaw Tool Pre-setter(Option)

The Automatic Tool Pre-setter increases part accuracy and setup consistency.

The system features the following:

Automatic, manual, and tool-breakage-detection operations

Conversational-style templates for easy tool-setting operations

No macro programming required for operation

Outputs G-code to MDI, where it may be edited, or transferred into a program

Includes User-Definable Macros option

Model	KL-30 CNC	KL-30H CNC
*CAPACITY:*
Swing over bed	Φ650 mm	Φ650 mm
Max. cutting dia. for disc parts	Φ500 mm	Φ500 mm
Max. cutting dia. for axle parts	Φ320 mm	Φ320 mm
Max. turning length	910 mm	900 mm
Hydraulic chuck dia.	12" (305 mm)	12" (305 mm)
*TRAVEL:*
Cross slide travel (X-axis)	270 mm	270 mm
Longitudinal travel (Z-axis)	1060 mm	1060 mm
X/Z-axis guide rails	rolling/45.55 type/mm	rolling/45.55 type/mm
Bed structure	45°	45°
X/Z-axis ball screw dia. × thread pitch. accuracy class	Φ40/50×10. P3 mm	Φ40/50×10. P3 mm
*SPINDLE:*
Spindle speed	2500 rpm	2500 rpm
Spindle taper	А2-8	А2-8
Spindle bore	Φ90 mm	Φ90 mm
Hole diameter (Hydraulic chuck)	Φ91 mm	Φ91 mm
Draw pipe inner diameter (Hydraulic chuck)	Φ91 mm	Φ91 mm
Max. bar diameter (hydraulic chuck)	Φ73 mm	Φ73 mm
*TOOL:*
Tool station number	12 pcs	12 (driven) pcs
Tool section size	25×25 mm	32×32 mm
Max. tool diameter	40 mm	50 mm
Live tool speed	rpm	4000 rpm
Drive tool power	kw	5.5/7.5 kw
*TAIL STOCK:*
Tailstock quill taper	МK-6	МK-6
Tailstock quill diameter	Φ100 mm	Φ100 mm
Tailstock quill travel	200 mm	200 mm
*ACCURACY:*
Positioning accuracy	±0.005 mm	±0.005 mm
Repeatability	±0.003 mm	±0.003 mm
*SPEED:*
X/Z-axis rapid traverse	16/20 m/min	16/20 m/min
*COOLANT:*
Coolant tank capacity	250 L	250 L
Coolant pump power	0.18 kw	0.18 kw
Lubrication tank capacity	1.8 L	1.8 L
Hydraulic station power	2.2 kw	2.2 kw
*POWER:*
Main motor power	18.5 kw	18.5 kw
Main motor torque	117.7 N.m	117.7 N.m
*DIMENSIONS:*
Overall dimensions (L×W×H)	5450×1980×2260 mm	5450×1980×2260 mm
Weight approx.	7000 kg	7000 kg

▪ Siemens 808D controller
▪ Siemens controller with a MPG unit for lathe setting
▪ 8-12 position tool post
▪ 56/63/90mm spindle bore
▪ 3 jaw hydraulic chuck 10-12 inches
▪ Alarm Lamp (3 color status light)
▪ Hydraulic station
▪ Hydraulic control pedal
▪ Coolant and lubrication system
▪ Air conditioner for electrical cabinet
▪ LED Work light
▪ Live Centre
▪ Maintenance tool kit
▪ CNC system Fanuc 0i TF / Siemens 828D
▪ Shop Turn for Siemens 828D CNC system
▪ Hydraulic tailstock
▪ Automatic bar feeder
▪ Chip conveyor and a chip cart
▪ Turret with driven tools
▪ Driven tool holders
▪ Parts catcher
▪ Renishaw tool measuring unit
▪ Other configuration changes are possible as agreed with the client
