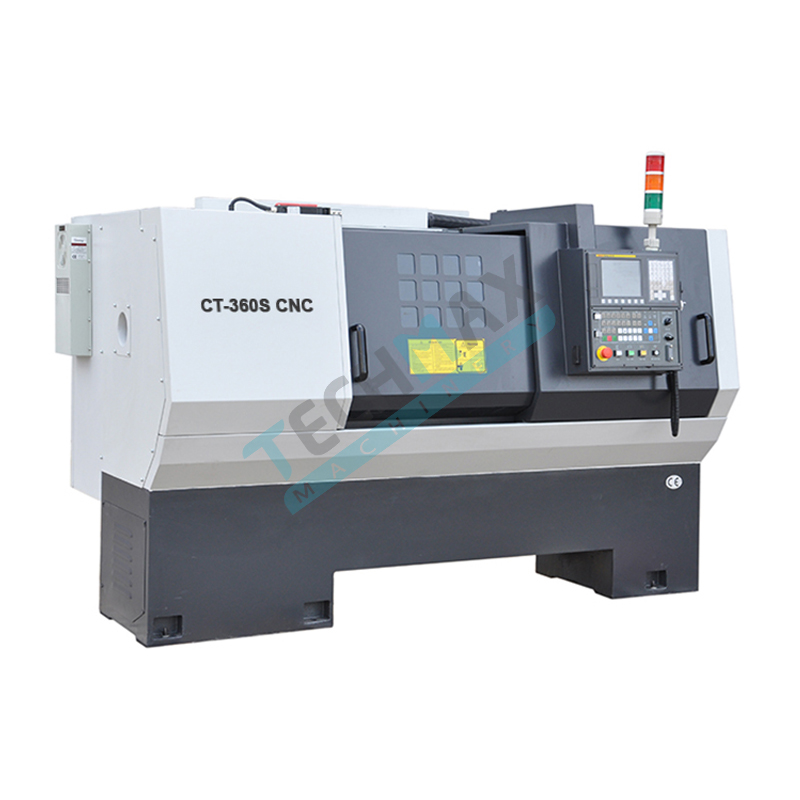

CT-360S CNC-CNC Flat Bed Lathes-

Techmax CT-series CNC lathe (Economic value model) is designed to provide stable performance and high profit. Free to choose single workpiece processing or working with bar feeder to do machining automatically and continuously

CNC System

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are available according to personal habits.

Hydraulic Chuck (Option)

3-jaw manual chuck or Taiwan hydraulic chuck(option) is available. This 3-Jaw hydraulic chuck provides excellent workholding capacity. It features industry-standard serrated jaws, and including all necessary adapters and tooling required for installation and operation.

Turrets

High productivity due the 4-way automatic tool changer as standard. 6-station/8-station tool changer (option) are available, which provides super-rigid mounting of turning tools and boring bars.

Hydraulic Tailstock (Option)

Auto chip conveyor (option) is available to remove the chips from the machine quickly.

The conveyor can be activated via M-code, or directly from the control pendant, and there are settings to control the interval and duration of the conveyor cycle for automatic operation.

High Rigid Tailstock

The tailstock, made of top quality, has a rigid construction, vibration absorbing and can easily travel along the bed guideways. A lead screw, driven by hand wheel, allows axial movement of the quill on a 120 mm maximum travel. It can be set eccentrically with max. ±13 mm for cutting.

Auto Bar Feeder (Option)

Free to choose single workpiece processing or working with auto bar feeder to do machining automatically and continuously.

Convenient parameters setting without need of any program modification. Length of remnant can be set as desired.

Self detection for abnormal motions and is displayed on LCD.

Model	CT-300S CNC	CT-360S CNC	CT-400S CNC
CAPACITY:
Swing over bed	Φ300 mm	Φ360 mm	Φ400 mm
Swing over cross slide	Φ135 mm	Φ180 mm	Φ225 mm
Distance between centers	500 mm	500/750/1000 mm	500/750/1000 mm
Max. turning length	390 mm	450/700/950 mm	450/700/950 mm
6-station turret max. turning length	340 mm	340/590/840 mm	340/590/840 mm
6-station turret max. turning diameter	Φ185 mm	Φ225 mm	Φ300 mm
Manual chuck dia.	6" (160 mm)	6" (160 mm); 8" (200 mm)	6" (160); 8" (200 mm)
Hydraulic chuck dia.	6" (160 mm)	8" (200 mm)	8" (200 mm)
TRAVEL:
Cross slide travel (X-axis)	165 mm	215 mm	235 mm
when using stationary cutting blocks	260 mm	295 mm	295 mm
Longitudinal travel (Z-axis)	460 mm	490/740/990 mm	490/740/990 mm
X/Z-axis guide rails	sliding type	sliding type	sliding type
Bed width	260 mm	312 mm	312 mm
X/Z-axis ball screw dia. × thread pitch. accuracy class	Φ20×5. P3/32×6. P4 mm	Φ20x5. P3/32×6. P4 mm	Φ20×5. P3/32×6. P4 mm
SPINDLE:
Spindle speed	200-3500 rpm	200-2800 rpm	200-2800 rpm
Spindle taper	D4; A2-5/МK-5; 40° type	С5/МK-5	С6/МK-6
Spindle bore	Φ38 mm	Φ40 mm	Φ52 mm
Bar diameter (hydraulic chuck)	Φ25 mm	Φ28 mm	Φ39 mm
TOOL:
Tool station number	4; 6 pcs	4; 6 pcs	4; 6 pcs
Tool section size	16×16 mm	20×20 mm	20×20 mm
TAIL STOCK:
Tailstock quill taper	МK-3	МK-4	МK-4
Tailstock quill diameter	Φ50 mm	Φ60 mm	Φ60 mm
Tailstock quill travel	130 mm	120 mm	120 mm
SPEED:
X/Z-axis rapid traverse	8/10 m/min	8/10 m/min	8/10 m/min
COOLANT:
Coolant pump power	0.09 kw	0.09 kw	0.09 kw
POWER:
Main motor power	3/3.7 kw	4; 5.5 kw	4; 5.5 kw
Main motor torque	30 N.m	41; 57 N.m	41; 57 N.m
Spindle torque	50 N.m	78; 101 N.m	78; 101 N.m
DIMENSIONS:
Overall dimensions (L×W×H)	1500×1100×1380 mm	1870/2120/2379×1200×1415 mm	1870 / 2120 / 2379×1200×1415 mm
Weight approx.	980/1170 kg	1500/1700/1900 kg	1600/1800/2000 kg

▪ Siemens 808D controller
▪ Siemens controller with a MPG unit for lathe setting
▪ 4-position automatic tool post
▪ 40mm spindle bore
▪ Infinitely variable spindle speed by inverter
▪ 3 jaw chuck - 160mm
▪ Step less speed change throughout entire speed range
▪ Alarm Lamp (3 color status light)
▪ Manual tail stock
▪ Coolant and lubrication system
▪ Heat exchanger for electrical cabinet
▪ LED Work light
▪ Dead Centre
▪ CNC system Fanuc 0i TF / Siemens 828D
▪ Shop Turn for Siemens 828D CNC system
▪ 6 station electric turret (except CT 300S)
▪ 3-jaw hydraulic chuck - 6/ 8 inches
▪ Hydraulic tailstock
▪ Fully enclosed cover
▪ Movable and fixed steady rests
▪ Other configuration changes are possible as agreed with the client
