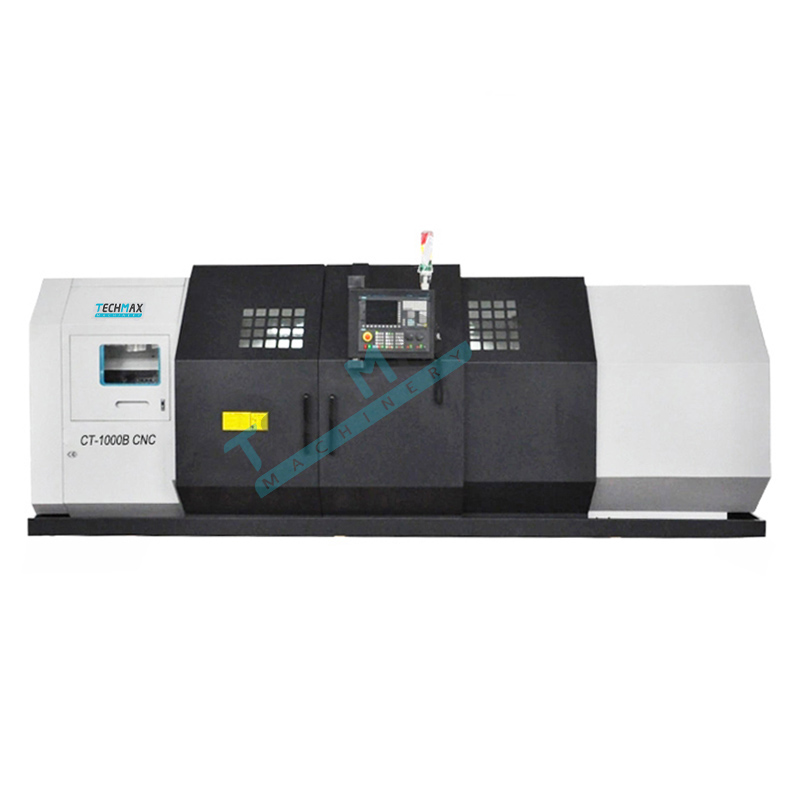

CT-1000B CNC-CNC Flat Bed Lathes-

Techmax CT-series CNC lathe (Economic value model) is designed to provide stable performance and high profit. Free to choose single workpiece processing or working with bar feeder to do machining automatically and continuously

CNC System

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are available according to personal habits.

Hydraulic Chuck (Option)

3-jaw manual chuck or Taiwan hydraulic chuck(option) is available. This 3-Jaw hydraulic chuck provides excellent workholding capacity. It features industry-standard serrated jaws, and including all necessary adapters and tooling required for installation and operation.

Turrets

High productivity due the 4-way automatic tool changer as standard. 6-station/8-station tool changer (option) are available, which provides super-rigid mounting of turning tools and boring bars.

Hydraulic Tailstock (Option)

Auto chip conveyor (option) is available to remove the chips from the machine quickly.

The conveyor can be activated via M-code, or directly from the control pendant, and there are settings to control the interval and duration of the conveyor cycle for automatic operation.

High Rigid Tailstock

The tailstock, made of top quality, has a rigid construction, vibration absorbing and can easily travel along the bed guideways. A lead screw, driven by hand wheel, allows axial movement of the quill on a 120 mm maximum travel. It can be set eccentrically with max. ±13 mm for cutting.

Auto Bar Feeder (Option)

Free to choose single workpiece processing or working with auto bar feeder to do machining automatically and continuously.

Convenient parameters setting without need of any program modification. Length of remnant can be set as desired.

Self detection for abnormal motions and is displayed on LCD.

Model	CT-630 CNC	CT-800 CNC	CT-910B CNC	CT-1000B CNC
*CAPACITY:*
Swing over bed	Φ630 mm	Φ800 mm	Φ910 mm	Φ1000 mm
Swing over cross slide	Φ360 mm	Φ500 mm	Φ530 mm	Φ620 mm
Distance between centers	1000/1500/2000/3000/4000 mm	1000/1500/2000/3000/4000 mm	1500/2000/3000/4000 mm	1500/2000/3000/4000 mm
Max. turning length	900/1400/1900/2900/3900 mm	900/1400/1900/2900/3900 mm	1350/1850/2850/3850 mm	1350/1850/2850/3850 mm
Manual chuck dia.	12" (305); 15" (380) /(mm)	12" (305); 15" (380) /(mm)	15" (380) /(mm)	15" (380) /(mm)
Hydraulic chuck dia.	12" (305); 15" (380) /(mm)	12" (305); 15" (380) /(mm)	15" (380) /(mm)	15" (380) /(mm)
*TRAVEL:*
Cross slide travel (X-axis)	440 mm	500 mm	520 mm	520 mm
Longitudinal travel (Z-axis)	1000/1500/2000/3000/4000 mm	1000/1500/2000/3000/4000 mm	1500/2000/3000/4000 mm	1500/2000/3000/4000 mm
X/Z-axis guide rails	sliding type	sliding type	sliding type	sliding type
Bed width	560 mm	560 mm	600 mm	600 mm
*SPINDLE:*
Spindle speed	40-90; 60-120; 120-360; 300-1000 rpm	40-105; 80-205; 195-500; 385-1000 rpm	10-90; 20-180; 40-320; 80-630 rpm	10-90; 20-180; 40-320; 80-630 rpm
Spindle step	4 steps	4 steps	4 steps	4 steps
Spindle taper	D11/1:20	D11/1:20	D11/120 1:20	D11/120 1:20
Spindle bore	Φ104 mm	Φ104 mm	Φ104 mm	Φ104 mm
*TOOL:*
Tool station number	4; 6; 8; 12 pcs	4; 6; 8; 12 pcs	4; 6; 8; 12 pcs	4; 6; 8; 12 pcs
Tool section size	40×40 mm	40×40 mm	40×40 mm	40×40 mm
*TAIL STOCK:*
Tailstock quill taper	МK-6	МK-6	МK-5	МK-6
Tailstock quill diameter	Φ100 mm	Φ100 mm	Φ100 mm	Φ100 mm
Tailstock quill travel	230 mm	230 mm	250 mm	250 mm
*SPEED:*
X/Z-axis rapid traverse	8/10 m/min	8/10 m/min	8/10 m/min	8 / 10 m/min
*COOLANT:*
Coolant pump power	0.37 kw	0.37 kw	0.37 kw	0.37 kw
*POWER:*
Main motor power	11; 15 kw	11; 15 kw	15; 18.5 kw	15; 18.5 kw
Main motor torque	72; 98 N.m	72; 98 N.m	98; 120 N.m	98; 120 N.m
Spindle torque	1800; 2450 N.m	1800; 2450 N.m	2130; 2608 N.m	2130; 2608 N.m
*DIMENSIONS:*
Overall dimensions (L×W×H)	3200/3700/4200/5200×1660×1820 mm	3200/370 /4200/5200×1660×1820 mm	4200×2000×1930 (length 3 m) mm	4200×2000×1930 (length 3 m) mm
Weight approx.	3480 / 3780 / 4280 / 4780 kg	3480 / 3780 / 4280 / 4780 kg	6600 (length 3 m) kg	6600 (length 3 m) kg

▪ Siemens 828D controller
▪ Siemens controller with a MPG unit for lathe setting
▪ 4-position automatic tool post
▪ 104mm spindle bore
▪ 3 jaw chuck - 12 inches
▪ Alarm Lamp (3 color status light)
▪ Manual tail stock
▪ Coolant and lubrication system
▪ Heat exchanger for electrical cabinet
▪ LED Work light
▪ Dead Centre
▪ Maintenance tool kit
▪ CNC system Fanuc 0i TF
▪ Shop Turn for Siemens 828D CNC system
▪ 6-12 position tool post
▪ 3-jaw hydraulic chuck - 12/15 inches
▪ Hydraulic tailstock
▪ Fully enclosed cover
▪ Chip conveyor and a chip cart
▪ Other configuration changes are possible as agreed with the client
