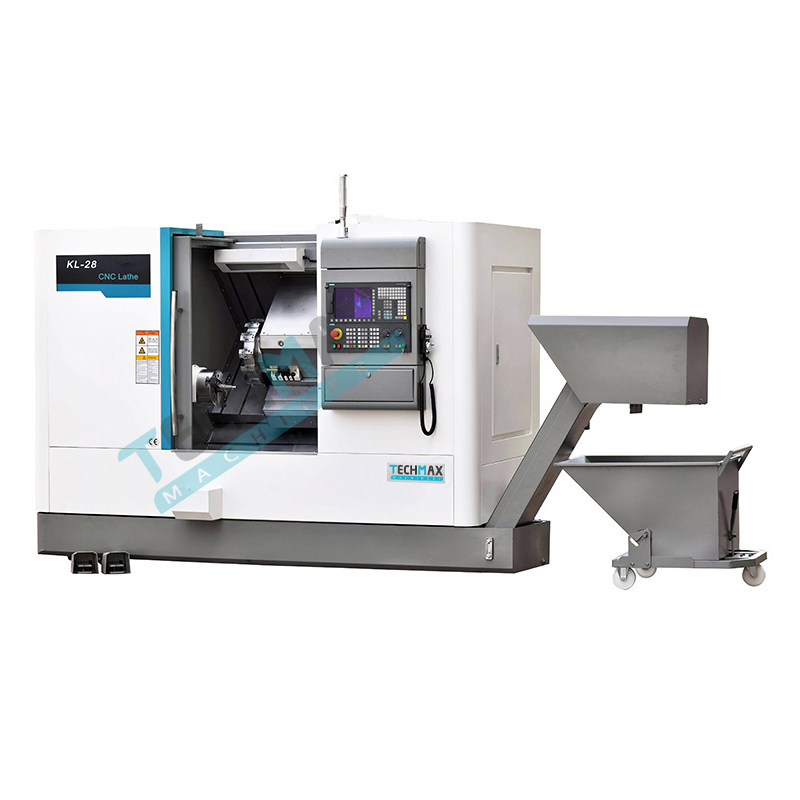

KL-28H CNC-CNC Slant Bed Lathes-

Techmax KL-series CNC lathe is designed to provide stable performance and high profit. Free to choose single workpiece processing or working with bar feeder to do machining automatically and continuously

CNC System

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are available according to personal habits.

Hydraulic Chuck

This 3-Jaw hydraulic chuck provides excellent workholding capacity. It features industry-standard serrated jaws, and including all necessary adapters and tooling required for installation and operation.

Turrets with Live Tools(Option)

8-12 position hydraulic turret or German Sauter turret with live tooling (option) are available, which provides super-rigid mounting of turning tools and boring bars, also allows secondary operations - milling, drilling, slotting, and tapping - on the face of the part and around the diameter.

Hydraulic Tailstock (Option)

Hydraulic tailstock or programmable tailstock (option) is available. The tailstock is an essential part of your turning operations as soon as the length to diameter ratio of your work piece exceeds 3:1.

Linear Guide ways

Taiwan P-grade linear guide ways which ensure high precision and outstanding quality. With a complete lineup featuring self-aligning capability, impact-load resistance and wide variety.

Precision Ball Screws

Taiwan C3 grade precision ball screws, reduced variation of motion error helps improve quality of machined surface of machine tools and productivity of semiconductor manufacturing devices.

Auto Chip Conveyor(Option)

Auto chip conveyor (option) is available to remove the chips from the machine quickly. The conveyor can be activated via M-code, or directly from the control pendant, and there are settings to control the interval and duration of the conveyor cycle for automatic operation.

Auto Bar Feeder(Option)

Free to choose single workpiece processing or working with auto bar feeder to do machining automatically and continuously. Convenient parameters setting without need of any program modification. Length of remnant can be set as desired. Self detection for abnormal motions and is displayed on LCD.

Parts Catcher(Option)

The catch tray is easily adjusted for different part-off locations, and can be positioned to catch parts from the main spindle. The parts catcher

is activated by M-code, and fully integrated with control system.

Renishaw Tool Pre-setter(Option)

The Automatic Tool Pre-setter increases part accuracy and setup consistency.

The system features the following:

Automatic, manual, and tool-breakage-detection operations

Conversational-style templates for easy tool-setting operations

No macro programming required for operation

Outputs G-code to MDI, where it may be edited, or transferred into a program

Includes User-Definable Macros option

Model	KL-15 CNC	KL-28 CNC	KL-28H CNC
*CAPACITY:*
Swing over bed	Φ360 mm	Φ520 mm	Φ520 mm
Max. cutting dia. for disc parts	Φ250 mm	Φ509 mm	Φ408 mm
Max. cutting dia. for axle parts	Φ150 mm	Φ250 mm	Φ260 mm
Max. turning length	300 mm	500 mm	420 mm
Hydraulic chuck dia.	6" (152 mm)	8" (200 mm); 10" (250 mm)	8" (200 mm); 10" (250 mm)
*TRAVEL:*
Cross slide travel (X-axis)	150 mm	282 mm	285 mm
Longitudinal travel (Z-axis)	320 mm	600 mm	600 mm
X/Z-axis guide rails	type/mm	rolling/35.45 type/mm	rolling/35.45 type/mm
Bed structure	45°	45°	45°
X/Z-axis ball screw dia. × thread pitch. accuracy class	mm	Φ32/40×10. P3 mm	Φ32/40×10. P3 mm
*SPINDLE:*
Spindle speed	6000 rpm	4000; 5000; 6000 rpm	4000; 5000; 6000 rpm
Spindle taper	А2-5	А2-6	А2-6 тип
Spindle bore	Φ56 mm	Φ63 mm	Φ63 mm
Hole diameter (Hydraulic chuck)	mm	Φ52; 75 mm	Φ52; 75 mm
Draw pipe inner diameter (Hydraulic chuck)	mm	Φ52 mm	Φ52 mm
Max. bar diameter (hydraulic chuck)	mm	Φ50 mm	Φ50 mm
*TOOL:*
Tool station number	8 pcs	12 pcs	12 (driven) pcs
Tool section size	25×25 mm	25×25 mm	20×20 mm
Max. tool diameter	Φ32 mm	Φ32 mm	Φ32 mm
Live tool speed	rpm	rpm	5000 rpm
Drive tool power	kw	kw	2.2/3.7 kw
*TAIL STOCK:*
Tailstock quill taper	МK-4	МK-4	МK-4
Tailstock quill diameter	Φ80 mm	Φ80 mm	Φ80 mm
Tailstock quill travel	90 mm	120 mm	120 mm
*ACCURACY:*
Positioning accuracy	±0.005 mm	±0.005 mm	±0.005 mm
Repeatability	±0.003 mm	±0.003 mm	±0.003 mm
*SPEED:*
X/Z-axis rapid traverse	12/20 m/min	30 m/min	30 m/min
*COOLANT:*
Coolant tank capacity	100 L	175 L	175 L
Coolant pump power	0.18 kw	0.18 kw	0.18 kw
Lubrication tank capacity	1.8 L	1.8 L	1.8 L
Hydraulic station power	2.2 kw	2.2 kw	2.2 kw
*POWER:*
Main motor power	9 kw	12. 17 kw	12. 17 kw
Main motor torque	57 N.m	115. 162 N.m	115. 162 N.m
*DIMENSIONS:*
Overall dimensions (L×W×H)	2700×1460×1680 mm	4500×1850×2000 mm	4500×1850×2000 mm
Weight approx.	3000 kg	3900 kg	3900 kg

▪ Siemens 808D controller
▪ Siemens controller with a MPG unit for lathe setting
▪ 8-12 position tool post
▪ 56/63/90mm spindle bore
▪ 3 jaw hydraulic chuck 10-12 inches
▪ Alarm Lamp (3 color status light)
▪ Hydraulic station
▪ Hydraulic control pedal
▪ Coolant and lubrication system
▪ Air conditioner for electrical cabinet
▪ LED Work light
▪ Live Centre
▪ Maintenance tool kit
▪ CNC system Fanuc 0i TF / Siemens 828D
▪ Shop Turn for Siemens 828D CNC system
▪ Hydraulic tailstock
▪ Automatic bar feeder
▪ Chip conveyor and a chip cart
▪ Turret with driven tools
▪ Driven tool holders
▪ Parts catcher
▪ Renishaw tool measuring unit
▪ Other configuration changes are possible as agreed with the client
