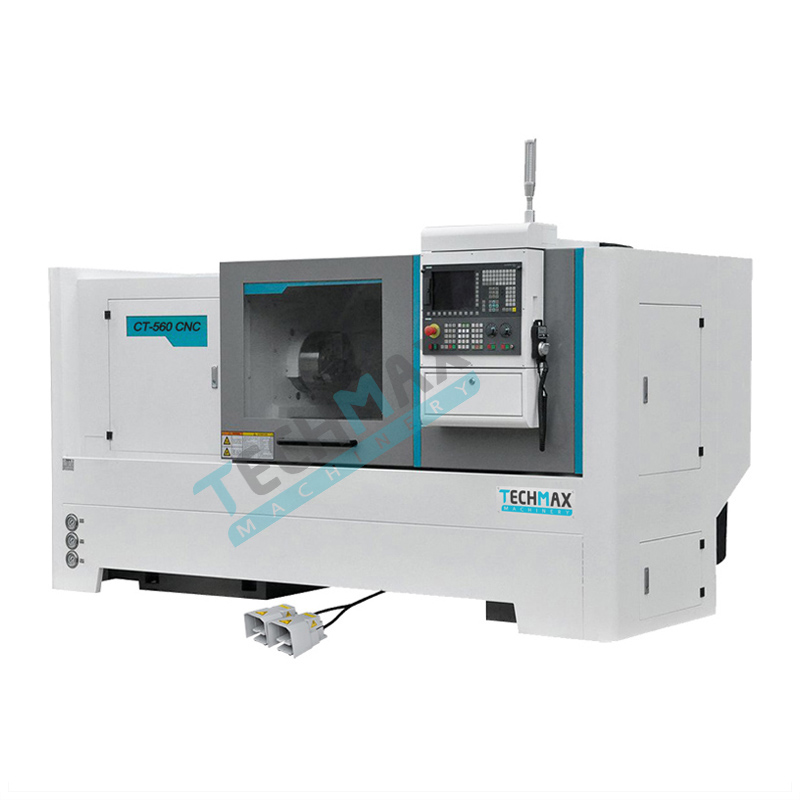

CT-560 CNC-CNC Flat Bed Lathes-

Techmax CT-series CNC lathe (Economic value model) is designed to provide stable performance and high profit. Free to choose single workpiece processing or working with bar feeder to do machining automatically and continuously

CNC System

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are available according to personal habits.

Hydraulic Chuck (Option)

3-jaw manual chuck or Taiwan hydraulic chuck(option) is available. This 3-Jaw hydraulic chuck provides excellent workholding capacity. It features industry-standard serrated jaws, and including all necessary adapters and tooling required for installation and operation.

Turrets

High productivity due the 4-way automatic tool changer as standard. 6-station/8-station tool changer (option) are available, which provides super-rigid mounting of turning tools and boring bars.

Hydraulic Tailstock (Option)

Auto chip conveyor (option) is available to remove the chips from the machine quickly.

The conveyor can be activated via M-code, or directly from the control pendant, and there are settings to control the interval and duration of the conveyor cycle for automatic operation.

High Rigid Tailstock

The tailstock, made of top quality, has a rigid construction, vibration absorbing and can easily travel along the bed guideways. A lead screw, driven by hand wheel, allows axial movement of the quill on a 120 mm maximum travel. It can be set eccentrically with max. ±13 mm for cutting.

Auto Bar Feeder (Option)

Free to choose single workpiece processing or working with auto bar feeder to do machining automatically and continuously.

Convenient parameters setting without need of any program modification. Length of remnant can be set as desired.

Self detection for abnormal motions and is displayed on LCD.

Model	CT-560 CNC	CT-660 CNC
*CAPACITY:*
Swing over bed	Φ560 mm	Φ660 mm
Swing over cross slide	Φ330 mm	Φ430 mm
Distance between centers	750 / 1000 / 1500 / 2000 / 3000 mm	750 / 1000 / 1500 / 2000 / 3000 mm
Max. turning length	650 / 900 / 1400 / 1900 / 2900 mm	650 / 900 / 1400 / 1900 / 2900 mm
6-station turret max. turning length	585 / 735 / 1235 / 1735 / 2735 mm	585 / 735 / 1235 / 1735 / 2735 mm
6-station turret max. turning diameter	Φ420 mm	Φ520 mm
Manual chuck dia.	10" (250); 12" (305) /(mm)	10" (250); 12" (305) inch (mm)
Hydraulic chuck dia.	10" (250); 12" (305) inch (mm)	10" (250); 12" (305) inch (mm)
*TRAVEL:*
Cross slide travel (X-axis)	320 mm	365 mm
Longitudinal travel (Z-axis)	720 / 970 / 1470 / 1970 / 2970 mm	720 / 970 / 1470 / 1970 / 2970 mm
X/Z-axis guide rails	sliding type	sliding type
Bed width	405 mm	405 mm
*SPINDLE:*
Spindle speed	27-135; 55-270; 160-805; 325-1630 rpm	27-135; 55-270; 160-805; 325-1630 rpm
Spindle step	4 steps	4 steps
Spindle taper	А2-8 / MK-7	D8/113 1:20
Spindle bore	Φ80 mm	Φ105 mm
*TOOL:*
Tool station number	4; 6 pcs	4; 6 pcs
Tool section size	20×20 (VDI30); 32×32 (4 station) mm	32×32 mm
*TAIL STOCK:*
Tailstock quill taper	MK-5	MK-5
Tailstock quill diameter	Φ75 mm	Φ75 mm
Tailstock quill travel	150 mm	150 mm
*SPEED:*
X/Z-axis rapid traverse	8 / 10 m/min	8/10 m/min
*COOLANT:*
Coolant pump power	0.09 kw	0.09 kw
*POWER:*
Main motor power	7.5; 11 kw	11 kw
Main motor torque	76; 111 N.m	111 N.m
Spindle torque	1407; 2055 N.m	2055 N.m
*DIMENSIONS:*
Overall dimensions (L×W×H)	2250 / 2500 / 3000 / 3500 / 4500×1200×1520 mm	2250 / 2500 / 3000 / 3500 / 4500×1200×1580 mm
Weight approx.	2700 / 3000 / 3600 / 4100 / 4700 kg	3100 / 3700 / 3800 / 4300 / 5300 kg

▪ Siemens 808D controller
▪ Siemens controller with a MPG unit for lathe setting
▪ 4-position automatic tool post
▪ 80mm spindle bore
▪ 3 jaw chuck - 250mm
▪ Alarm Lamp (3 color status light)
▪ Manual tail stock
▪ Coolant and lubrication system
▪ Heat exchanger for electrical cabinet
▪ LED Work light
▪ Dead Centre
▪ Maintenance tool kit
▪ CNC system Fanuc 0i TF / Siemens 828D
▪ Shop Turn for Siemens 828D CNC system
▪ 6-8 position tool post
▪ 3-jaw hydraulic chuck - 10/12 inches
▪ Hydraulic tailstock
▪ Fully enclosed cover
▪ Bar puller
▪ Chip conveyor and a chip cart
▪ Other configuration changes are possible as agreed with the client
